F-NTSCGEWOU EPR PCP High Voltage Fiber Optic Reeling Cable

  • APPLICATION OVERVIEW
    F-NTSCGEWOU reeling cables are used for connection of large mobile equipment such as excavators and spreaders, gantry cranes, etc., under very high mechanical loads,suitable for motorized reeling on mono-spiralor level-wind reelers.


    Categories: , .Tags: , , , .

Description

F-NTSCGEWOU EPR PCP High Voltage Fiber Optic Reeling Cable

F-NTSCGEWOU EPR PCP High Voltage Fiber Optic Reeling Cable Application

F-NTSCGEWOU H.V. flexible reeling cables are used in power supplies for connecting large equipment which may be moved from location to location for extremely high mechanical loads excavators, spreaders, loading bridges, portal cranes, construction equipment as well as for supplying power to heavy duty hoisting equipment, transport and conveyor systems, power supplies for building mains network sections in cases of power failure and similar applications.

F-NTSCGEWOU is flexible reeling cable with integrated fiber optic wires for high and extreme mechanical stresses, including torsional stress, deflection into different planes, and high reeling speed. Suitable for indoor and outdoor applications

F-NTSCGEWOU cables are suitable for installation in dry,moist and wet rooms as well as for outdoor installations and applications in locations with an associated explosion hazard, and building sites, in industrial workshops, open-face mining, in quarries. Trailing cables are primarily used in smelting foundries, lime stone plants, sand and gravel excavation, container terminals, docks and harbours, in brown coal excavation, salt and ore mining as in heavy industrial applications.

NTSCGEWOU EPR PCP High Voltage Reeling Cable Construction

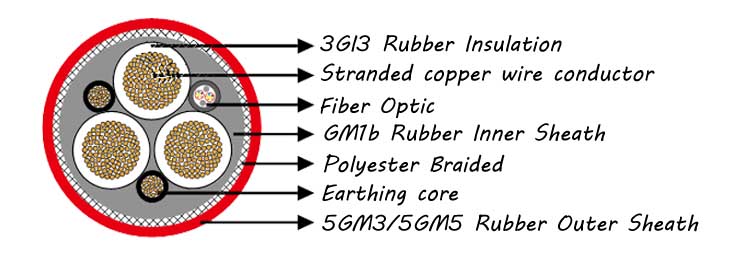

F-NTSCGEWOU EPR PCP High Voltage Fiber Optic Reeling Cable Construction
Conductors Flexible stranded copper conductor, class 5 according to DIN VDE 0295.
Inner Conductor Layer Semi-conductive layer.
Insulation EPR type 3GI3.
Outer Conductor Layer Semi-conductive layer.
Earth Conductor Split into two in the outer interstices.
InnerSheath Rubber type GM1b/5GM3.
Fiber Optics 12 FO 50/125 or 62.5/125 or E9/125μm within protection sheath.
Reinforcement Polyester anti-torsion braid
Outer Sheath Rubber type 5GM3/5GM5, flame retardant and oil resistant.

F-NTSCGEWOU EPR PCP High Voltage Reeling Cable Technical Data

Standards DIN VDE 0250, Part 813
Rated voltage (Uo/U) 1.8/3 3.6/6 6/10 8.7/15 12/20 14/25 18/30
Maximum permissible operating voltage in AC systems (Uo/U) 2.1/3.6 4.2/7.2 6.9/12 10.4/18 13.9/24 17.3/30 20.8/36
Maximum permissible operating voltage in DC systems (Uo/U) 2.7/5.4 5.4/10.8 9/18 13.5/27 18/36 22.5/45 27/54
AC test voltage According to DIN VDE 0250, Part 813 6 11 17 24 29 36 43
Current carrying capacity According to DIN VDE 0298, Part 4 Higher values are permissible in specific cases.Please consult the manufacturer.

F-NTSCGEWOU EPR PCP High Voltage Reeling Cable Specification

No. of coresx cross-section Outer-Ø ca. mm. Copper weight Cable weight approx. Tensile strength AWG
n x mm2 ± 10% kg/km kg/km N no.*)
3.6/6 (7.2) kV F-NTSCGEWÖU OF
3×25+2×25/2+6LWL 38.2 960 2635 1125 4
3×25+2×50/2+6LWL 42.1 1200 3070 1125 4
3×35+2×25/2+6LWL 42 1248 3055 1575 2
3×35+2×50/2+6LWL 43.8 1488 3418 1575 2
3×50+2×25/2+6LWL 45.3 1680 3503 2250 1
3×50+2×50/2+6LWL 45.3 1920 3630 2250 1
3×70+2×25/2+6LWL 48.5 2256 4340 3150 2/0
3×70+2×50/2+6LWL 51.7 2496 5270 3150 2/0
3×95+2×50/2+6LWL 54.2 3216 5540 4275 3/0
3×120+2×70/2+6LWL 57.9 4128 7032 5400 4/0
3×150+2×70/2+6LWL 63 4992 8010 6750 250MCM
3×185+2×95/2+6LWL 66 6240 9320 8325 350MCM
3×240+2×120/2+6LWL 74.1 8064 11930 10800 450MCM
3×300+2×150/2+6LWL 79.3 10080 14215 13500 550MCM
6/10 (12) kV F-NTSCGEWÖU OF
3×25+2×25/2+6LWL 42.9 960 2515 1125 4
3×25+2×50/2+6LWL 44.6 1200 2945 1125 4
3×35+2×25/2+6LWL 45.1 1248 2975 1575 2
3×35+2×50/2+6LWL 46.2 1488 3340 1575 2
3×50+2×25/2+6LWL 46.6 1680 3630 2250 1
3×50+2×50/2+6LWL 48.3 1920 3790 2250 1
3×70+2×25/2+6LWL 49.9 2256 4515 3150 2/0
3×70+2×50/2+6LWL 54.7 2496 4740 3150 2/0
3×95+2×50/2+6LWL 55.5 3216 5720 4275 3/0
3×120+2×70/2+6LWL 59.2 4128 6875 5400 4/0
3×150+2×70/2+6LWL 64.3 4992 8215 6750 250MCM
3×185+2×95/2+6LWL 68.3 6240 9518 8325 350MCM
3×240+2×120/2+6LWL 75.4 8064 12185 10800 450MCM
3×300+2×150/2+6LWL 80.6 10080 14522 13500 550MCM
14/25 (30) kV F-NTSCGEWÖU OF
3×25+2×25/2+6LWL 52.3 960 3740 1125 4
3×25+2×50/2+6LWL 52.3 1200 3900 1125 4
3×35+2×25/2+6LWL 55.1 1248 4270 1575 2
3×35+2×50/2+6LWL 55.1 1488 4440 1575 2
3×50+2×25/2+6LWL 58.3 1680 5000 2250 1
3×50+2×50/2+6LWL 58.3 1920 5160 2250 1
3×70+2×25/2+6LWL 63 2256 6190 3150 2/0
3×70+2×50/2+6LWL 63 2496 6390 3150 2/0
3×95+2×50/2+6LWL 67.3 3216 7340 4275 3/0
3×120+2×70/2+6LWL 71 4128 8550 5400 4/0
3×150+2×70/2+6LWL 76 4992 10020 6750 250 MCM
3×185+2×95/2+6LWL 79 6240 11410 8325 350 MCM
3×240+2×120/2+6LWL 87.5 8064 14380 10800 450 MCM
3×300+2×150/2+6LWL 92.7 10080 16820 13500 550 MCM
18/30 (36) kV F-NTSCGEWÖU OF
3×25+2×25/2+6LWL 55.7 960 4140 1125 4
3×25+2×50/2+6LWL 55.7 1200 4310 1125 4
3×35+2×25/2+6LWL 58.6 1248 4720 1575 2
3×35+2×50/2+6LWL 58.6 1488 4880 1575 2
3×50+2×25/2+6LWL 63.2 1680 5680 2250 1
3×50+2×50/2+6LWL 63.2 1920 5840 2250 1
3×70+2×25/2+6LWL 66.6 2256 6670 3150 2/0
3×70+2×50/2+6LWL 66.6 2496 6870 3150 2/0
3×95+2×50/2+6LWL 70.7 3216 7860 4275 3/0
3×120+2×70/2+6LWL 75.8 4128 9350 5400 4/0
3×150+2×70/2+6LWL 79.5 4992 10630 6750 250 MCM
3×185+2×95/2+6LWL 82.5 6240 12040 8325 350 MCM
3×240+2×120/2+6LWL 91 8064 15070 10800 450 MCM
3×300+2×150/2+6LWL 97.2 10080 17780 13500 550 MCM

Other Specification will be available upon request.
Photographs are not to scale and do not represent detailed images of the respective products.
